PRODUCT DESCRIPTION
| Material | Aluminium6061/6063/7075/5052 etc |
| Stainless steel303/304/400/316,SteelQ235,20#,45#etc |
| Brass:C36000(C26800),C37700(HPb59),C38500(HPb58),C2200(CuZn37), C28000(CuZn40) etc, |
| Copper;Beryllium bronze copper. |
| Process | CNC turning,CNC milling, CNC grinding;CNC lathe machining, CNC boring;CNC drilling, surface treatment |
| Surface treatment | Hardness anodizing black/clear, steel oxidizing dark-blue, electro-polishing, electroless nickel plating, silver plating, golden plating etc |
| Tolerance | +/-0.01mm or +/- 0.002" |
| Certification | ISO9001:2008&2015 |
| Production capacity | depend on complicacy of different products and the quantity |
| Experience | 17years of CNC machining products |
| Packaging | standard export carton with pallet or as per customes'requirement |
| Lead time | making arrangement upon customers'request |
| Term of Payment | T/T, L/C, Escrow, paypal, western union |
| Part size | Diameter from 0.5mm to 1000mm |
| Minimum Order | Comply with customer's demand |
| Delivery way | EXPRESS, BY SEA OR BY AIR on your requirement. |
| Maine equipment | Machining center, CNC, Lathe, Milling machine, Drilling machine, Internal and external grinding machine, Cylindrical grinding machine, Tapping drilling machine, Wire cutting machine etc. |
| Testing facility | Coordinate measuring machine, projector, roughness tester, hardness tester, concentricity tester. Height tester, . |
| General Tolerance(+/-mm) |
| Milling | 0.005 |
| Turning | 0.005 |
| Grinding(Flatness/in2) | 0.003 |
| ID/OD Grinding | 0.002 |
| Wire-Cutting | 0.002 |
Face milling process (cutter rotation axis is vertical - 0° inclination relative to tool axis)
Milling is a cutting process that uses a milling cutter to remove material from the surface of a workpiece. The milling cutter is a rotary cutting tool, often with multiple cutting points. As opposed to drilling, where the tool is advanced along its rotation axis, the cutter in milling is usually moved perpendicular to its axis so that cutting occurs on the circumference of the cutter. As the milling cutter enters the workpiece, the cutting edges (flutes or teeth) of the tool repeatedly cut into and exit from the material, shaving off chips (swarf) from the workpiece with each pass. The cutting action is shear deformation; material is pushed off the workpiece in tiny clumps that hang together to a greater or lesser extent (depending on the material) to form chips. This makes metal cutting somewhat different (in its mechanics) from slicing softer materials with a blade.
The milling process removes material by performing many separate, small cuts. This is accomplished by using a cutter with many teeth, spinning the cutter at high speed, or advancing the material through the cutter slowly; most often it is some combination of these three approaches. The speeds and feedsused are varied to suit a combination of variables. The speed at which the piece advances through the cutter is called feed rate, or just feed; it is most often measured in length of material per full revolution of the cutter.
There are two major classes of milling process:
- In face milling, the cutting action occurs primarily at the end corners of the milling cutter. Face milling is used to cut flat surfaces (faces) into the workpiece, or to cut flat-bottomed cavities.
- In peripheral milling, the cutting action occurs primarily along the circumference of the cutter, so that the cross section of the milled surface ends up receiving the shape of the cutter. In this case the blades of the cutter can be seen as scooping out material from the work piece. Peripheral milling is well suited to the cutting of deep slots, threads, and gear teeth.
Why should you choose RJC
1. High Quality & Competitive Price & Good Service
2. Prompt reply and the experienced engineers to track all the process
3. Advanced equipment and excellent R&D Team.
4. Highly skilled manufacturing process & Strict quality Control System.
5. Small orders supported.
| Manufacturing Capabilities | Machines: 3-axis Machining centers; CNC turning centers; Stamping machines; Tapping machines; Cutting machines; Polishing machines; sandblasting machines; |
| Materials | Aluminum; Brass; Bronze; Copper; Stainless Steel; Steel / Steel Alloys; Nylon; POM; Acrylic; Derlin; |
| Secondary Operations | Anodizing; Black Oxide; Electroplating; Heat Treating; Brushing; Grinding / Polishing; Painting / Powder Coating; |
| Additional Services | CAD/CAM Support; Design Assistance; Just-in-Time Delivery; Prototype Services; Low Volume Production; High Volume Production; Reverse Engineering; Assembly Services; |
| Length | custom size |
| Diameter | custom size |
| Drawing Software: | Solid work, Pro/E, AutoCAD CAM |
| Inspection | Products are RoHS compliant; Test Equipment: CMM; 2.5D projector; Micrometer; Height gauge; The dimensions of first parts, middle parts and final parts must be recorded. |
1. OEM Manufacturing welcome: Product, Package...
2. Sample order ,All small qantities are avaliable
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
5.All products can be customized according to your needs.
6.All products have been tested on test benches.Test data is qualified.
7.Product quality protection,on-time shipment protection ,payment protection.
Our promise:
1.Offering design and improvement scheme freely.
2.Offering video and photos with details freely during production.
3.Helping customers to do factory inspection freely for his other Chinese suppliers.
4.Helping customers lacking money to apply for Alibaba finacing.
5.Producing completely according to the accuracy of drawings,assembly measurement to detect function and strict quality control to ensure 0 return rate.
6.99% orders can be ensured delivery time.
7.Quote can be offered within 2 days fastest.
8.Delivery time is only 7 days fastest.
9.Responding to the enquiry within 2 hours.
10.The materials we use are optimal.
11.24 hours online service.
12.The lowest price with the same quality and service.
13.Logistics arrangement with high performance to price ratio.
14.The most suitable packing method to different products.
Product Tags:
|
|

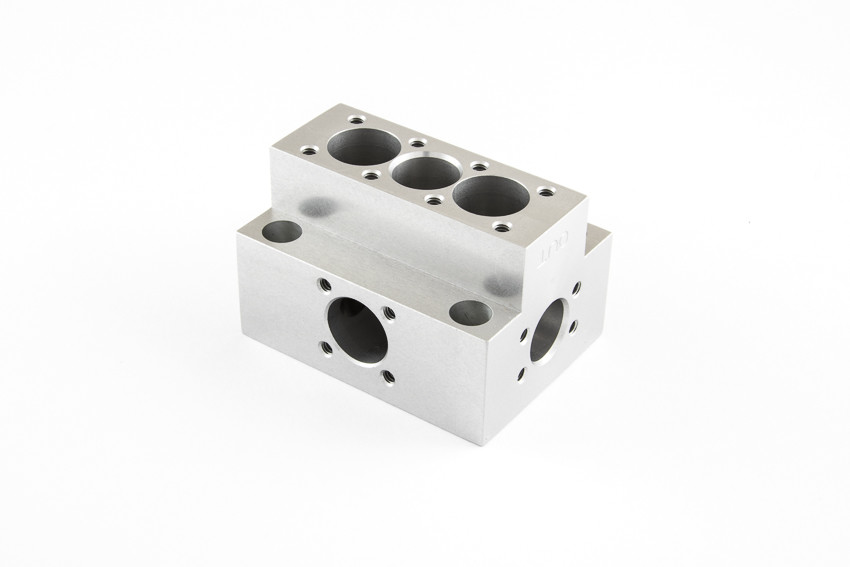

7075AL Anodized Cnc Precision Milling , Metal Milling Service Long Lifespan Images
|
